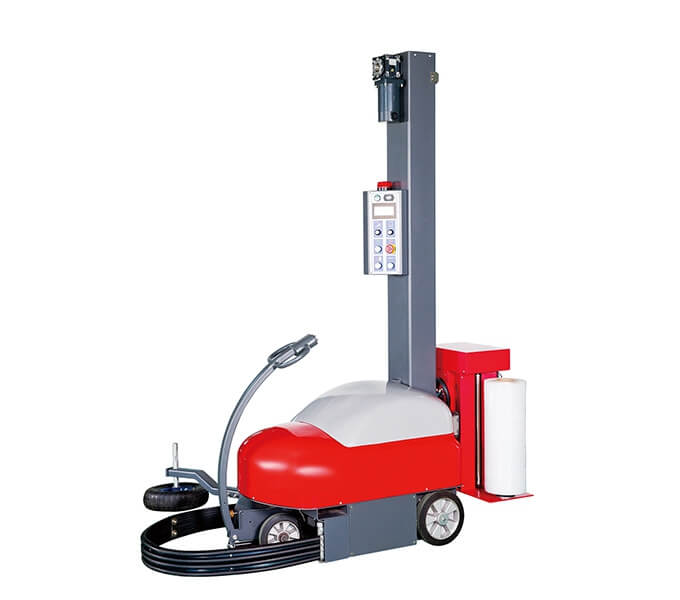

CHW-B1200 Robot Stretch Wrapper
CHW-B1200
BESPOKE OPTION
Any of CHAN Pack’s machines can be modified or customized design to suit your specification, if you are not sure exactly what you want then contact CHAN Pack and Sales team will discuss your requirements with you.
FEATURES
FEATURES
- Safety system : stopped in case of contact with an obstacle
- PLC controlled, with display control panel.
- Battery charger and battery indicator
- Pallet height sensor
- Top and bottom layers adjustable
- Up & Down or Up only wrapping programs
- Supplied with 24V battery and charger
- Film carriage driven by chain
- 4 separate wrapping modes
*Single cycle mode ( only upward or only downward )
*The standard mode ( upward / downward)
*Fixed height of wrapping rounds ( only covering the top )
*Fixed middle of wrapping rounds (only middle of reinforcing wrapping) - Soft start / stop + emergency stop + adjustable rotation speed
- No pallet size limit
- Move easily
SPECIFICATIONS
SPECIFICATIONS
| Model | CHW-B1200 | |
| Power Supply | 3φ, 220V/380V, 50/60HZ | |
| Rotation speed | 0-75 M/min. | |
| Wrapping height | 600-2000mm (including pallet's height) | |
| Min. pallet size | dia.1000mm | |
| Max. pallet size | unlimit | |
| Lifting speed | 0-5m/min. | |
| Film speed | 0-70m/min. | |
| Pre-stretch ratio: | 200% | |
| Battery capacity | 100Ah(12V),2pcs | |
| Film specification | PE film core I.D.: 76mm, O.D.:250mmx Width:500mm | |
| Continual working time | 10-12 hours | |
| Control system | PLC | |
| Machine size | L1700xW1350xH2430mm | |
| ※CHA Pack reserves the right to modify specification for quality development. | ||
